CQ游-短波SSTV衛星814

VR2GY · 發表於 5-9-2019 00:17:35

CQ游-短波SSTV衛星814

VR2GY · 發表於 6-9-2019 00:35:43

VR2GY · 發表於 7-9-2019 22:03:41

VR2GY · 發表於 11-9-2019 08:21:56

VR2VBU · 發表於 11-9-2019 20:42:14

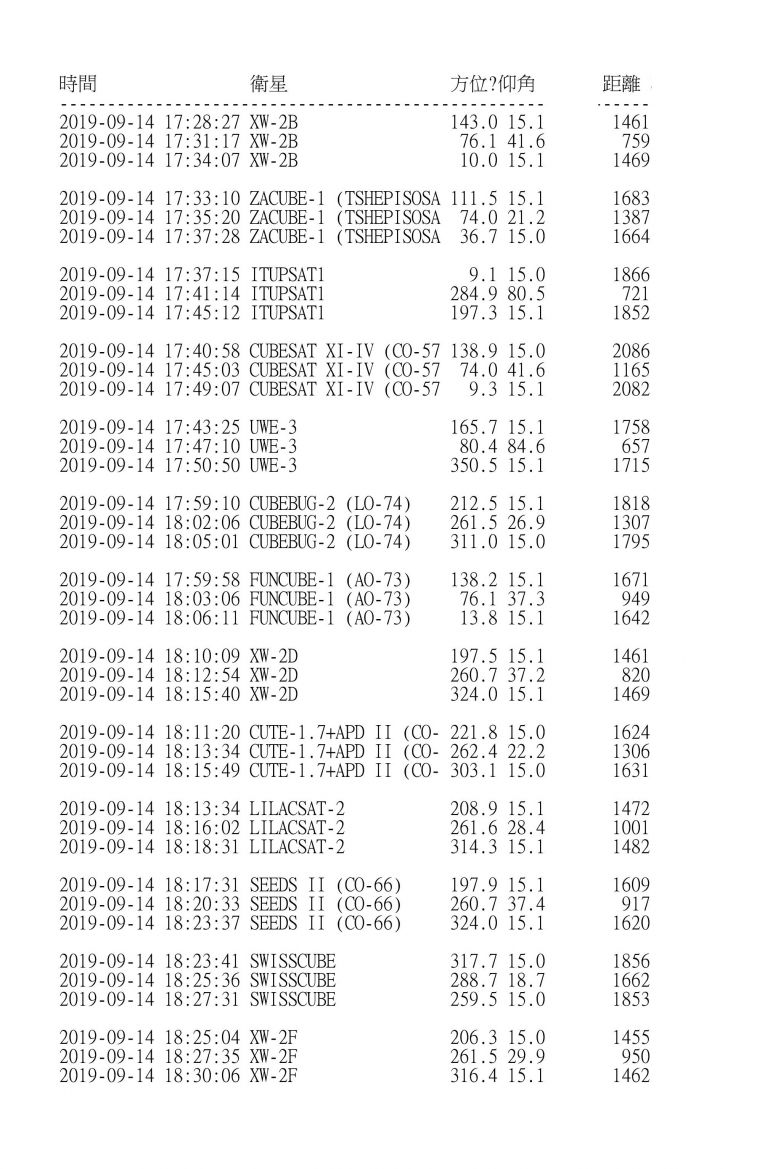

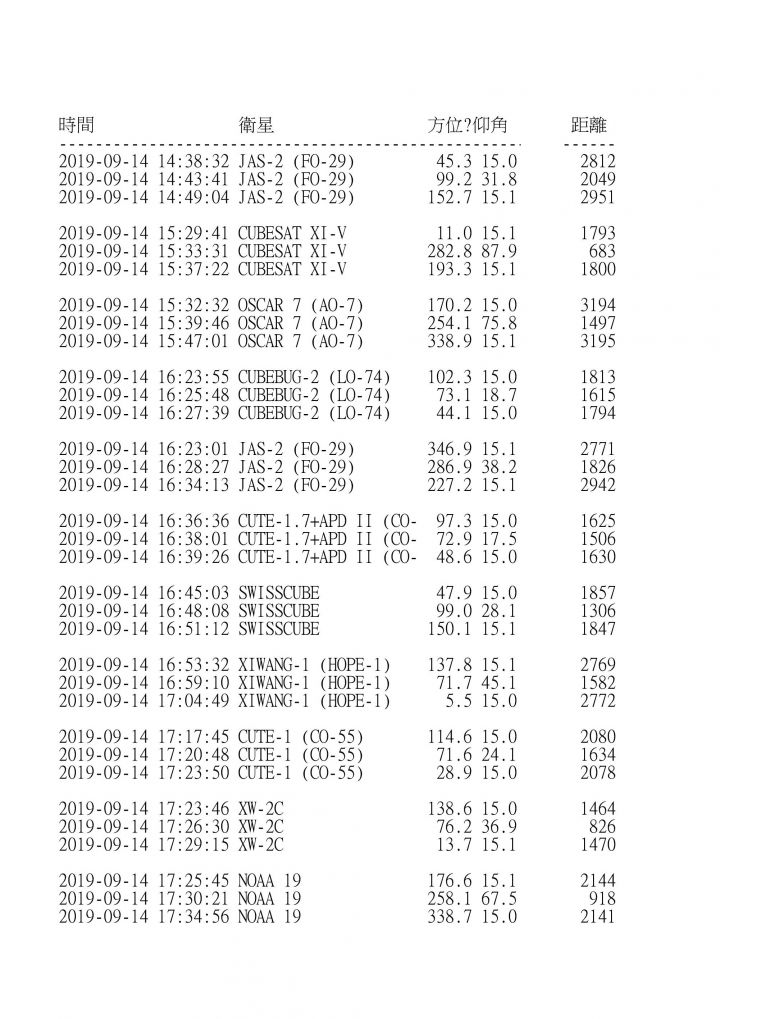

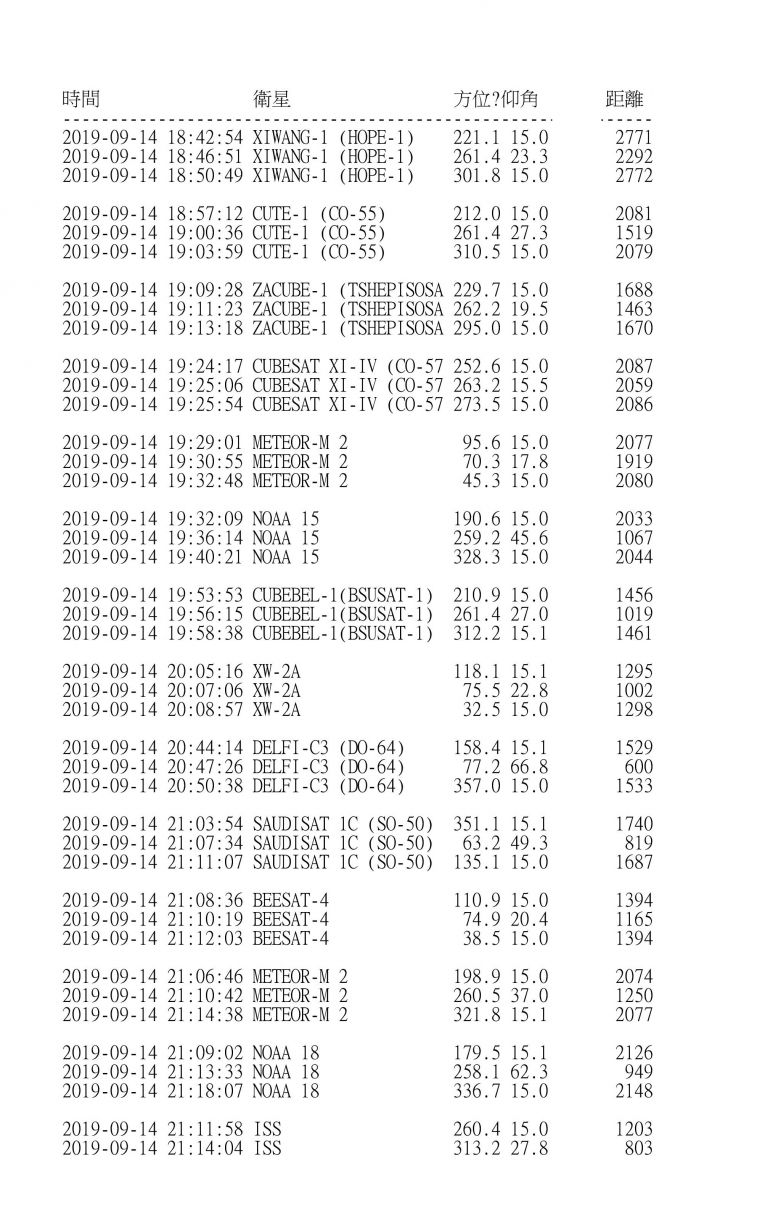

2019-09-14 衞星資料

VR2VBU · 發表於 11-9-2019 20:42:52

.

VR2VBU · 發表於 11-9-2019 20:43:32

.

VR2GY · 發表於 13-9-2019 09:02:45

VR2GY · 發表於 13-9-2019 22:42:49

AO-73 (FUNcube-1)

FUNcube-1, also known as AO-73, is a 1U cubesat (10cm x 10cm x 10cm) built and launched as a collaborative effort between AMSAT-UK, AMSAT-NL, and ISIS-BV. The primary function of the satellite is educational outreach, utilizing onboard experiments, an easy-to-copy 1200 baud BPSK beacon, an innovative SDR receiver (the FUNcube Dongle), and telemetry decoding, archiving, and display program (FUNcube Dashboard). While in eclipse the beacon reduces power, and a 20 kHz U/V transponder is activated.

Frequencies are as follows:

• 145.935 MHz BPSK Telemetry 30mW (eclipse) or 300 mW (illuminated)

• Inverting SSB/CW transponder 300 mW PEP (eclipse)

– 435.150 – 435.130 MHz Uplink

– 145.950 – 145.970 MHz Downlink

Launched November 21st, 2013 on a Dnepr rocket, AO-73 was placed in a 682 x 595 km sun-synchronous orbit, inclined 97.8 degrees.

VR2GY · 發表於 13-9-2019 23:00:28
