12年3月18日再生電池測試希望一號信標成功

VR2GY · 發表於 27-12-2010 21:07:19

XW-1工作計畫
目前HO-68(XW-1)衛星在試運行中，信標機始終打開，轉發器開機時間每週公佈。
信標機：435.790Mhz CW
始終開機
==========
以下時間為UTC
26 Dec 2010
===================
16:55...Turn On--FM/PACSAT
Africa,Europe,NA
17:40...Turn Off
18:45...Turn On--FM/PACSAT
India,Africa,Europe,NA
19:30...Turn Off
20:10...Turn On--FM/PACSAT
Africa,Europe,NA
20:55...Turn Off
22:50...Turn On--FM/PACSAT
North Asia,East Asia,
South Asia,Oceania
23:35...Turn Off
27 Dec 2010
===================
02:31...Turn On--FM/PACSAT
North Asia, East Asia,South Asia
02:47...Turn Off
13:25...Turn On--FM/PACSAT
NA, South America
14:10...Turn Off
16:40...Turn On--FM/PACSAT
India,Middle East,Europe,NA
17:25...Turn Off
18:15...Turn On--FM/PACSAT
India,Middle East,Europe,NA
19:00...Turn Off
28 Dec 2010
===================
00:20...Turn On--FM/PACSAT
NA,East Asia,Oceania
01:05...Turn Off
02:14...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
02:30...Turn Off
10:25...Turn On--FM/PACSAT
NA,East Asia,Oceania
11:10...Turn Off
13:10...Turn On--FM/PACSAT
Europe,NA,South America
13:55...Turn Off
16:25...Turn On--FM/PACSAT
India, Africa,Europe,NA
South America
17:10...Turn Off
18:10...Turn On--FM/PACSAT
Africa,Middle East,Europe,NA
18:55...Turn Off
19:35...Turn On--FM/PACSAT
Africa,Middle East,Europe,NA
20:20...Turn Off
29 Dec 2010
===================
00:05...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
00:50...Turn Off
01:53...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
02:08...Turn Off
12:50...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
13:35...Turn Off
16:05...Turn On--FM/PACSAT
Africa,India,Middle East
Europe,NA
16:50...Turn Off
17:55...Turn On--FM/PACSAT
Africa,Europe,NA
18:40...Turn Off
19:20...Turn On--FM/PACSAT
Africa,Europe,NA
20:05...Turn Off
30 Dec 2010
===================
23:45...Turn On--FM/PACSAT
Oceania,Asia,Europe,NA
00:30...Turn Off
01:30...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
02:15...Turn Off
14:20...Turn On--FM/PACSAT
Europe, NA,South America
15:05...Turn Off
17:40...Turn On--FM/PACSAT
India,Africa,Europe,NA
18:25...Turn Off
19:25...Turn On--FM/PACSAT
India,Africa,Europe,NA
20:10...Turn Off
20:50...Turn On--FM/PACSAT
Africa,Europe,NA
21:35...Turn Off
23:30...Turn On--FM/PACSAT
NA,North Asia, Oceania
00:15...Turn Off
31 Dec 2010
===================
01:00...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
01:45...Turn Off
14:05...Turn On--FM/PACSAT
Europe, NA,South America
14:50...Turn Off
17:20...Turn On--FM/PACSAT
Africa,Europe,NA
18:05...Turn Off
19:05...Turn On--FM/PACSAT
India,Africa,Europe,NA
19:50...Turn Off
20:35...Turn On--FM/PACSAT
Africa,Europe,NA
21:20...Turn Off
23:15...Turn On--FM/PACSAT
North Asia,East Asia,
South Asia,Oceania
00:00...Turn Off
01 Jan 2011
===================
02:59...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
Oceania
03:14...Turn Off
13:50...Turn On--FM/PACSAT
Europe,NA,South America
14:35...Turn Off
17:00...Turn On--FM/PACSAT
Africa,Europe,NA
17:45...Turn Off
18:50...Turn On--FM/PACSAT
India,Africa,Europe,NA
19:35...Turn Off
20:15...Turn On--FM/PACSAT
Africa,Europe,NA
21:00...Turn Off
22:55...Turn On--FM/PACSAT
North Asia,East Asia,
South Asia,Oceania
23:40...Turn Off
02 Jan 2011
====================
02:41...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
Oceania
02:57...Turn Off
13:35...Turn On--FM/PACSAT
Europe,NA,South America
14:20...Turn Off

VR2GY · 發表於 2-1-2011 14:02:12

HO-68“希望一號”業餘衛星轉發器工作計畫
2011 01====02-09
________________________________________
以下時間為UTC

UTC:
02 Jan 2011
================================
16:40...Turn On--CW/SSB
India, Africa, Middle East,
Europe,NA
17:25...Turn Off

18:25...Turn On--CW/SSB
Africa,Europe,Middle East,NA
19:10...Turn Off

20:00...Turn On--CW/SSB
Africa,Europe,Middle East,NA
20:45...Turn Off

22:35...Turn On--CW/SSB
South America,NA,North Asia
23:20...Turn Off

03 Jan 2011
================================
02:20...Turn On--CW/SSB
North Asia,East Asia,South Asia
02:34...Turn Off

13:15...Turn On--CW/SSB
NA,South America
14:00...Turn Off

16:30...Turn On--CW/SSB
India, Africa, Middle East,
Europe,NA
17:15...Turn Off

18:15...Turn On--CW/SSB
Africa,Europe,NA
19:00...Turn Off

22:20...Turn On--CW/SSB
NA,North Asia,East Asia,
Oceania
23:05...Turn Off

04 Jan 2011
================================
02:03...Turn On--CW/SSB
North Asia, East Asia,South Asia
02:17...Turn Off

10:15...Turn On--CW/SSB
Oceania,Asia,Europe
11:00...Turn Off

13:00...Turn On--CW/SSB
NA, South America
13:45...Turn Off

16:15...Turn On--CW/SSB
India,Middle East,Europe,NA
17:00...Turn Off

17:50...Turn On--CW/SSB
India,Middle East,Europe,NA
18:35...Turn Off

19:45...Turn On--CW/SSB
Africa,Europe,NA
20:30...Turn Off

05 Jan 2011
=================================
23:50...Turn On--CW/SSB
North Asia,East Asia,South Asia
Oceania
00:35...Turn Off

01:47...Turn On--CW/SSB
North Asia,East Asia,South Asia
02:02...Turn Off

12:40...Turn On--CW/SSB
Europe,NA,South America
13:25...Turn Off

16:00...Turn On--CW/SSB
India, Africa,Europe,NA
South America
16:45...Turn Off

17:30...Turn On--CW/SSB
Africa,Middle East,Europe,NA
18:15...Turn Off

19:10...Turn On--CW/SSB
Africa,Middle East,Europe,NA
19:55...Turn Off

06 Jan 2011
=================================
23:35...Turn On--CW/SSB
NA,North Asia,East Asia,Oceania
00:20...Turn Off

03:17...Turn On--CW/SSB
North Asia,East Asia,South Asia
03:32...Turn Off

14:10...Turn On--CW/SSB
Europe,NA,South America
14:55...Turn Off

17:25...Turn On--CW/SSB
Africa,India,Middle East
Europe,NA
18:10...Turn Off

18:55...Turn On--CW/SSB
Africa,Europe,NA
19:40...Turn Off

20:40...Turn On--CW/SSB
Africa,Europe,NA
21:25...Turn Off

23:15...Turn On--CW/SSB
Oceania,Asia,Europe,NA
24:00...Turn Off

07 Jan 2011
================================
03:00...Turn On--CW/SSB
North Asia,East Asia,South Asia
03:15...Turn Off

13:55...Turn On--CW/SSB
Europe, NA,South America
14:40...Turn Off

17:10...Turn On--CW/SSB
India,Africa,Europe,NA
17:55...Turn Off

18:40...Turn On--CW/SSB
India,Africa,Europe,NA
19:25...Turn Off

20:25...Turn On--CW/SSB
Africa,Europe,NA
21:10...Turn Off

23:00...Turn On--CW/SSB
NA,North Asia,East Asia,Oceania
23:45...Turn Off

08 Jan 2011
================================

02:43...Turn On--CW/SSB
North Asia,East Asia,South Asia
02:58...Turn Off

13:40...Turn On--CW/SSB
Europe, NA,South America
14:25...Turn Off

17:10...Turn On--CW/SSB
Africa,Europe,NA
17:55...Turn Off

18:20...Turn On--CW/SSB
India,Africa,Europe,NA
19:05...Turn Off

20:05...Turn On--CW/SSB
Africa,Europe,NA
20:50...Turn Off

22:45...Turn On--CW/SSB
North Asia,East Asia,
South Asia,Oceania
23:30...Turn Off

09 Jan 2011
================================
02:27...Turn On--CW/SSB
North Asia,East Asia,South Asia
02:43...Turn Off

13:20...Turn On--CW/SSB
Europe,NA,South America
14:05...Turn Off

VR2GY · 發表於 7-1-2011 00:42:27

Amateur Radio satellite HO-68 - operating schedule

Alan Kung, BA1DU has released the latest operating schedule for the amateur radio satellite HO-68 covering January 3-10.

HO-68, also known as Xi Wang 1 (Hope 1), was launched on December 15. It's linear transponder is proving very popular and provided hundreds of SSB and CW contacts over the Christmas-New Year holiday period.

Due to Doppler shift the CW beacon can appear to be up to +/- 9 kHz from its nominal frequency of 435.790 MHz and you need to tune your receiver to follow it during the pass. The beacon has been received on simple antennas such as a ¼ wave ground plane but for best results try a small yagi with about 8 elements.

To reduce the effects of Doppler the SSB transponder is inverting. This means that a LSB signal on the uplink becomes a USB signal on the downlink. You don’t need much power to work through the satellite, many contacts have been made using 5 watts output. Always use the lowest power possible and ensure your downlink signal is never stronger than the beacon.

Newcomers to amateur satellites will find the article 'Getting started on Amateur Radio Satellites' by John Heath G7HIA is well worth reading, see http://www.uk.amsat.org/content/view/408/168/

VR2GY · 發表於 17-1-2011 00:22:37

HO-68“希望一號”業餘衛星轉發器工作計畫20110109-16
________________________________________
以下時間為UTC

09 Jan 2011
================================
16:35...Turn On--FM/PACSAT
Africa,Europe,NA
17:20...Turn Off

18:25...Turn On--FM/PACSAT
India,Africa,Europe,NA
19:10...Turn Off

19:50...Turn On--FM/PACSAT
Africa,Europe,NA
20:35...Turn Off

22:25...Turn On--FM/PACSAT
North Asia,East Asia,
South Asia,Oceania
23:10...Turn Off

10 Jan 2011
================================
02:11...Turn On--FM/PACSAT
North Asia, East Asia,South Asia
02:26...Turn Off

13:05...Turn On--FM/PACSAT
NA, South America
13:50...Turn Off

16:20...Turn On--FM/PACSAT
India,Middle East,Europe,NA
17:05...Turn Off

18:05...Turn On--FM/PACSAT
India,Middle East,Europe,NA
18:50...Turn Off

11 Jan 2011
=================================
00:00...Turn On--FM/PACSAT
NA,East Asia,Oceania
00:45...Turn Off

01:59...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
02:14...Turn Off

10:05...Turn On--FM/PACSAT
NA,East Asia,Oceania
10:50...Turn Off

12:50...Turn On--FM/PACSAT
Europe,NA,South America
13:35...Turn Off

16:05...Turn On--FM/PACSAT
India, Africa,Europe,NA
South America
16:50...Turn Off

17:40...Turn On--FM/PACSAT
Africa,Middle East,Europe,NA
18:25...Turn Off

19:15...Turn On--FM/PACSAT
Africa,Middle East,Europe,NA
20:00...Turn Off

12 Jan 2011
=================================
23:40...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
00:25...Turn Off

01:41...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
01:55...Turn Off

12:35...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
13:20...Turn Off

17:35...Turn On--FM/PACSAT
Africa,India,Middle East
Europe,NA
18:20...Turn Off

19:05...Turn On--FM/PACSAT
Africa,Europe,NA
19:50...Turn Off

20:45...Turn On--FM/PACSAT
Africa,Europe,NA
21:30...Turn Off

13 Jan 2011
================================
23:25...Turn On--FM/PACSAT
Oceania,Asia,Europe,NA
00:10...Turn Off

01:20...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
02:05...Turn Off

14:05...Turn On--FM/PACSAT
Europe, NA,South America
14:50...Turn Off

17:15...Turn On--FM/PACSAT
India,Africa,Europe,NA
18:00...Turn Off

18:45...Turn On--FM/PACSAT
India,Africa,Europe,NA
19:30...Turn Off

20:30...Turn On--FM/PACSAT
Africa,Europe,NA
21:15...Turn Off

23:05...Turn On--FM/PACSAT
NA,North Asia, Oceania
23:50...Turn Off

14 Jan 2011
================================
01:00...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
01:45...Turn Off

13:45...Turn On--FM/PACSAT
Europe, NA,South America
14:30...Turn Off

17:00...Turn On--FM/PACSAT
Africa,Europe,NA
17:45...Turn Off

18:30...Turn On--FM/PACSAT
India,Africa,Europe,NA
19:15...Turn Off

20:15...Turn On--FM/PACSAT
Africa,Europe,NA
21:00...Turn Off

22:50...Turn On--FM/PACSAT
North Asia,East Asia,
South Asia,Oceania
23:35...Turn Off

15 Jan 2011
================================
02:34...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
Oceania
02:50...Turn Off

13:30...Turn On--FM/PACSAT
Europe,NA,South America
14:15...Turn Off

16:45...Turn On--FM/PACSAT
Africa,Europe,NA
17:30...Turn Off

18:30...Turn On--FM/PACSAT
India,Africa,Europe,NA
19:15...Turn Off

19:55...Turn On--FM/PACSAT
Africa,Europe,NA
20:40...Turn Off

22:35...Turn On--FM/PACSAT
North Asia,East Asia,
South Asia,Oceania
23:20...Turn Off

16 Jan 2011
================================
02:22...Turn On--FM/PACSAT
North Asia,East Asia,South Asia
Oceania
02:37...Turn Off

13:15...Turn On--FM/PACSAT
Europe,NA,South America
14:00...Turn Off

VR2GY · 發表於 29-1-2011 14:45:29

希望一號生病了

VR2GY · 發表於 2-2-2011 01:08:12

希望一號
請你重新給我希望吧

vr2ugp · 發表於 2-2-2011 13:56:01

VR2UGP 收到的信標

VR2UIO · 發表於 3-2-2011 01:54:46

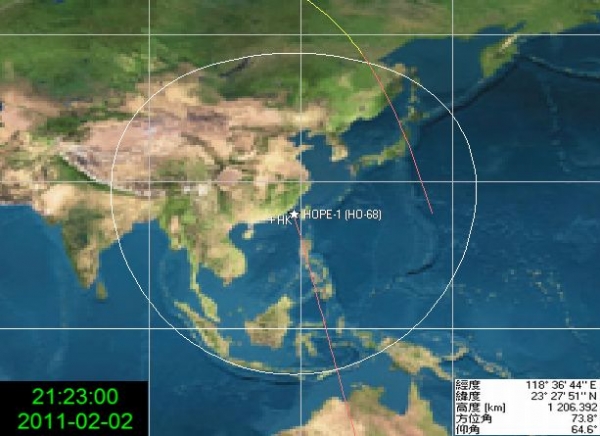

於2011年2月2日, 收到中國業餘衛星 HO-68 [希望一號]的 CW 信標。

QTH = 洪水橋
設備 = Yaesu FT-817 + DIY 2 單元 HB9CV 天線
頻率 = 435.790MHz CW
時間 = 21:15

現場收音 MP3 Format

HO-68_2011_02_02_2115.mp3 (833.9 KB, 下載次數: 333)

信標內容：
BJ1SA XW XW AAA TTT AUA AUE ETT TTT TTT TTT TTT TTT TTT TTT TTT XW XW

VR2UIO · 發表於 4-2-2011 17:43:34

2011年2月2日21:23
HO-68從南向北飛過香港上空

VR2UIO · 發表於 6-2-2011 23:31:12

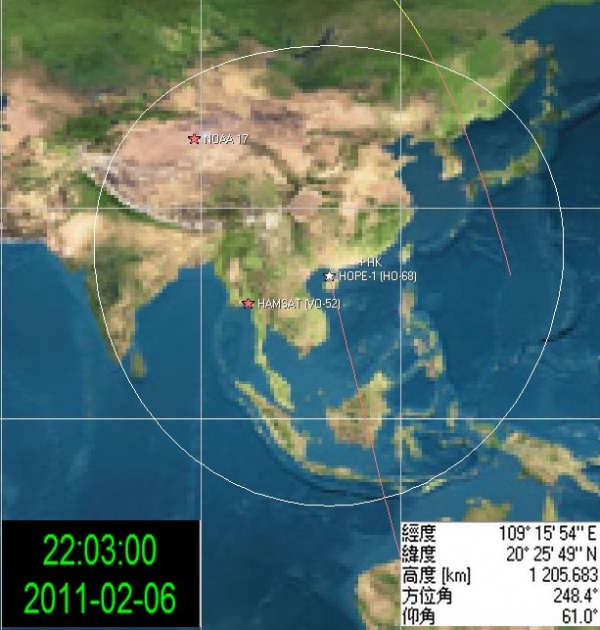

2011年2月6日22:03
HO-68從南向北飛過香港上空

賬號		自動登錄	找回密碼
密碼			立即註冊
