CQ 旅行 改-1月24日

VR2GY

2004年10 月17日

VR2GY

1

VR2GY

21年前

VR2GY

1

VR2GY

1

VR2GY

•


VR2GY

1

VR2GY

無線電頻率與呼號

名稱	呼號	主頻率   （MHz）	次頻率   （MHz）	運作時間   （香港時間）
香港進場	Hong Kong Approach	119.10*	119.35    133.70	24小時
香港離場	Hong Kong Departure	123.80*/122.0	124.05	24小時
香港進場指導	Hong Kong Director	119.50		24小時
香港塔台	Hong Kong Tower(North/South)	118.40* （南跑道）    118.20  （北跑道）	118.70	24小時
香港地面管制	Hong Kong Ground	121.60* （北）    122.55*  （南）		24小時
目視飛行區管中心	Hong Kong Zone	120.60*		24小時
香港許可頒發	Hong Kong Clearence	129.90	124.65	08:01-24:00
香港航空情報	Hong Kong Information	122.40	121.00	08:01-17:00
香港離場情報通播	Hong Kong Departure ATIS	127.05*		24小時

VR2GY

Go higher or lower in frequency | Table of Contents | Links to other pages

Frequency or frequency band	Subpart	Class of station	Remarks
108.000 MHz	Q	Radionavigation land test
108.000-108.050 MHz	Q	VHF omni-range	VHF omni-range (VOR) [87.475(b)(5)]
108.050 MHz	Q	Radionavigation land test
108.050-108.100 MHz	Q	VHF omni-range	VHF omni-range (VOR) [87.475(b)(5)]
108.100 MHz	Q	Radionavigation land test
108.100-108.150 MHz	Q	Localizer	ILS localizer [87.475(b)(4)]
108.150 MHz	Q	Radionavigation land test
108.150-111.950 MHz	Q	Localizer	ILS localizer [87.475(b)(4)]
111.950-117.950 MHz	Q	VHF omni-range	VHF omni-range (VOR) [87.475(b)(5)]
118.000-121.400 MHz	O	Aircraft (Air carrier and Private), Airport control tower, Automatic weather observation	25 kHz channel spacing
121.500 MHz	G, H, I, J, K, M, O	Aircraft (Air carrier and Private), Aeronautical advisory (unicom), Aeronautical enroute, Flight test, Aviation support, Airport control tower, Aeronautical multicom, Civil Air Patrol	Emergency and distress [87.195]. Maritime Radiodetermination [80.375]
121.600-121.925 MHz	O, L, Q	Aircraft (Air carrier and Private), Airport control tower, Aeronautical utility mobile, Radionavigation land test	25 kHz channel spacing
121.950 MHz	K	Aviation support
121.975 MHz	F	Private aircraft only, Automatic weather observation	Air traffic control operations
122.000 MHz	F	Aircraft (Air carrier and Private)	Air carrier and private aircraft enroute flight advisory service provided by FAA
122.025 MHz	F	Private aircraft only, Automatic weather observation	Air traffic control operations
122.050 MHz	F	Aircraft (Air carrier and Private)	Air traffic control operations
122.075 MHz	F	Private aircraft only, Automatic weather observation	Air traffic control operations
122.100 MHz	F, O	Aircraft (Air carrier and Private), Airport control tower	Air traffic control operations
122.125-122.675 MHz	F	Private aircraft only	Air traffic control operations; 25 kHz spacing
122.700 MHz	G, L	Aircraft (Air carrier and Private), Aeronautical advisory (unicom), Aeronautical utility mobile	Unicom at airports with no control tower; Aeronautical utility stations
122.725 MHz	G, L	Private aircraft only, Aeronautical advisory (unicom), Aeronautical utility mobile	Unicom at airports with no control tower; Aeronautical utility stations
122.750 MHz	F	Private aircraft only	Private fixed wing aircraft air-to-air communications
122.775 MHz	K	Aircraft (Air carrier and Private), Aviation support
122.800 MHz	G, L	Aircraft (Air carrier and Private), Aeronautical advisory (unicom), Aeronautical utility mobile	Unicom at airports with no control tower; Aeronautical utility stations
122.825 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
122.850 MHz	H, K,	Aircraft (Air carrier and Private), Aeronautical multicom, Aviation support
122.875 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
122.900 MHz	F, H, L, M	Aircraft (Air carrier and Private), Aeronautical search and rescue, Aeronautical multicom, Aeronautical utility mobile
122.925 MHz	H	Private aircraft only, Aeronautical multicom
122.950 MHz	G, L	Private aircraft only, Aeronautical advisory (unicom), Aeronautical utility mobile	Unicom at airports with full-time control tower [87.217]; Aeronautical utility stations
122.975 MHz	G, L	Private aircraft only, Aeronautical advisory (unicom), Aeronautical utility mobile	Unicom at airports with no control tower; Aeronautical utility stations
123.000 MHz	G, L	Aircraft (Air carrier and Private), Aeronautical advisory (unicom), Aeronautical utility mobile	Unicom at airports with no control tower; Aeronautical utility stations
123.025 MHz	F	Private aircraft only	Helicopter air-to-air communications; Air traffic control operations
123.050 MHz	G, L	Private aircraft only, Aeronautical advisory (unicom), Aeronautical utility mobile	Unicom at airports with no control tower; Aeronautical utility stations
123.075 MHz	G, L	Private aircraft only, Aeronautical advisory (unicom), Aeronautical utility mobile	Unicom at airports with no control tower; Aeronautical utility stations
123.100 MHz	M, O	Aircraft (Air carrier and Private), Airport control tower, Aeronautical search and rescue
123.125 MHz	J	Aircraft (Air carrier and Private), Flight test	Itinerant
123.150 MHz	J	Aircraft (Air carrier and Private), Flight test	Itinerant
123.175 MHz	J	Aircraft (Air carrier and Private), Flight test	Itinerant
123.200 MHz	J	Aircraft (Air carrier and Private), Flight test
123.225 MHz	J	Aircraft (Air carrier and Private), Flight test
123.250 MHz	J	Aircraft (Air carrier and Private), Flight test
123.275 MHz	J	Aircraft (Air carrier and Private), Flight test
123.300 MHz	K	Aircraft (Air carrier and Private), Aviation support
123.325 MHz	J	Aircraft (Air carrier and Private), Flight test
123.350 MHz	J	Aircraft (Air carrier and Private), Flight test
123.375 MHz	J	Aircraft (Air carrier and Private), Flight test
123.400 MHz	J	Aircraft (Air carrier and Private), Flight test	Itinerant
123.425 MHz	J	Aircraft (Air carrier and Private), Flight test
123.450 MHz	J	Aircraft (Air carrier and Private), Flight test
123.475 MHz	J	Aircraft (Air carrier and Private), Flight test
123.500 MHz	K	Aircraft (Air carrier and Private), Aviation support
123.525 MHz	J	Aircraft (Air carrier and Private), Flight test
123.550 MHz	J	Aircraft (Air carrier and Private), Flight test
123.575 MHz	J	Aircraft (Air carrier and Private), Flight test	Itinerant
123.6-128.8 MHz	O	Aircraft (Air carrier and Private), Airport control tower, Automatic weather observation	25 kHz channel spacing
128.825-132.000 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF; 25 kHz channel spacing
132.025-135.975 MHz	O	Aircraft (Air carrier and Private), Airport control tower, Automatic weather observation	25 kHz channel spacing
136.000-136.075 MHz	O, S	Aircraft (Air carrier and Private), Airport control tower, Automatic weather observation	Air traffic control operations
136.100 MHz			Reserved for future unicom or AWOS
136.125-136.175 MHz	O, S	Aircraft (Air carrier and Private), Airport control tower, Automatic weather observation	Air traffic control operations
136.200 MHz			Reserved for future unicom or AWOS
136.225-136.250 MHz	O, S	Aircraft (Air carrier and Private), Airport control tower, Automatic weather observation	Air traffic control operations
136.275 MHz			Reserved for future unicom or AWOS
136.300-136.350 MHz	O, S	Aircraft (Air carrier and Private), Airport control tower, Automatic weather observation	Air traffic control operations
136.375 MHz			Reserved for future unicom or AWOS
136.400-136.450 MHz	O, S	Aircraft (Air carrier and Private), Airport control tower, Automatic weather observation	Air traffic control operations
136.475 MHz			Reserved for future unicom or AWOS
136.500-136.600 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.625 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.650 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.675 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.700 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.725 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.750 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.775 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.800 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.825 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.850 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.875 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.900 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.925 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.950 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF
136.975 MHz	I	Aircraft (Air carrier and Private), Aeronautical enroute	Domestic VHF

This chart derived from section 87.173 of the F.C.C. Rules.

---

Other charts of the aircraft band:

• Frequency Allocation Table, 118 -137 MHz from PerCon Corp.


---

Go higher or lower in frequency | Table of Contents | Links to other pages

---

This page written by John Neuhaus, WA2JXE <john@jneuhaus.com>. Please send me your comments and suggestions.
Last update: 970510Disclaimer [size=-1]There is no warranty as to the accuracy or completeness of the information on these pages. All risk relating to its use is assumed by the user.

VR2UIO

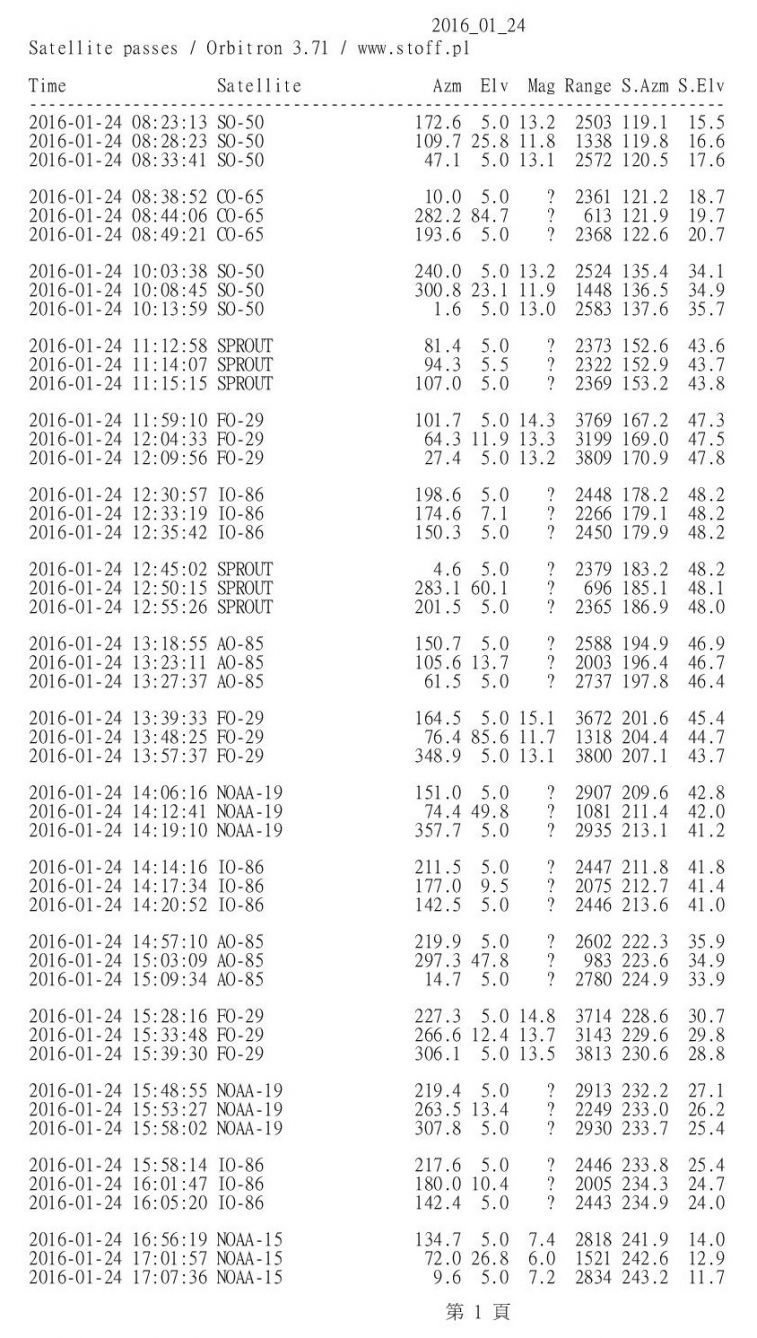

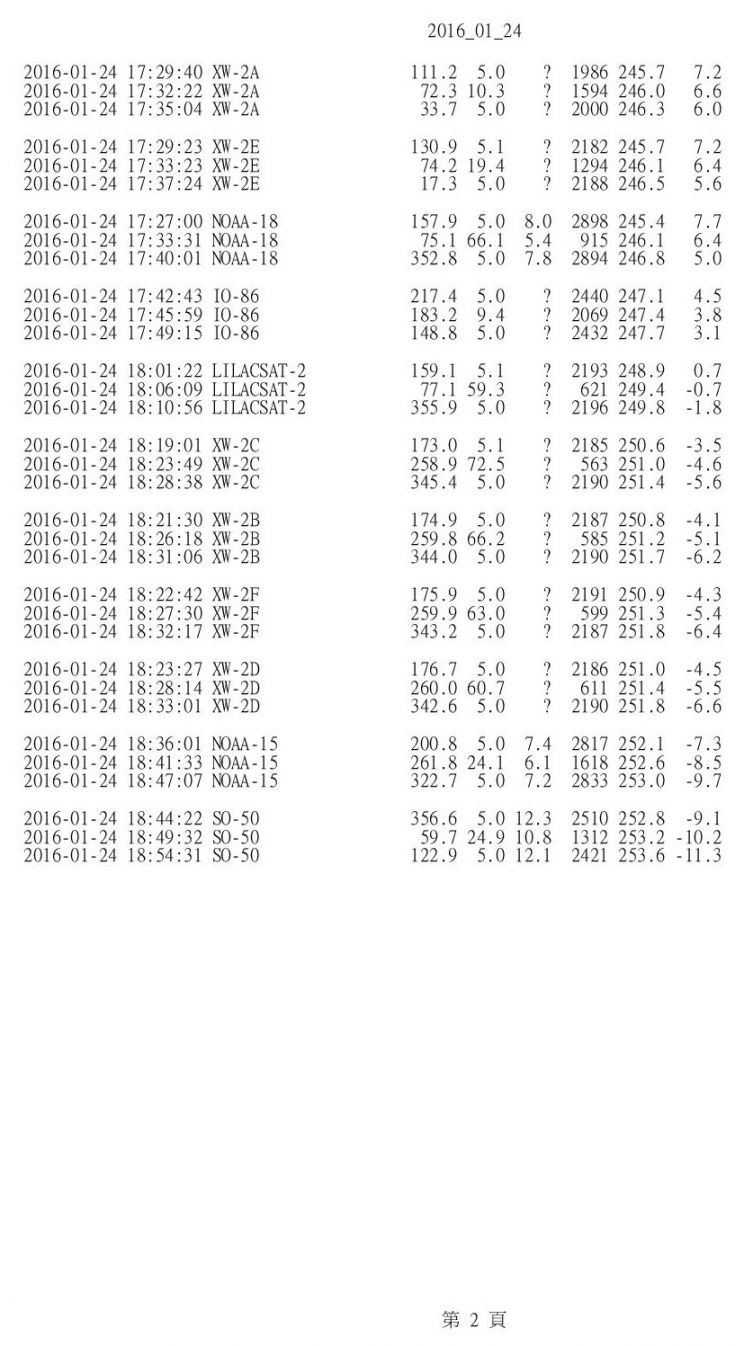

Satellite passes 2016 Jan 24
