聲控發射 vox 工作原理 +制作 +測試 (DIY-銲機派)

VR2GY · 發表於 29-12-2006 11:33:32

聲控發射 vox 工作原理 + 制作 + 測試

VR2GY · 發表於 30-12-2006 01:39:42

VR2GY · 發表於 30-12-2006 01:56:43

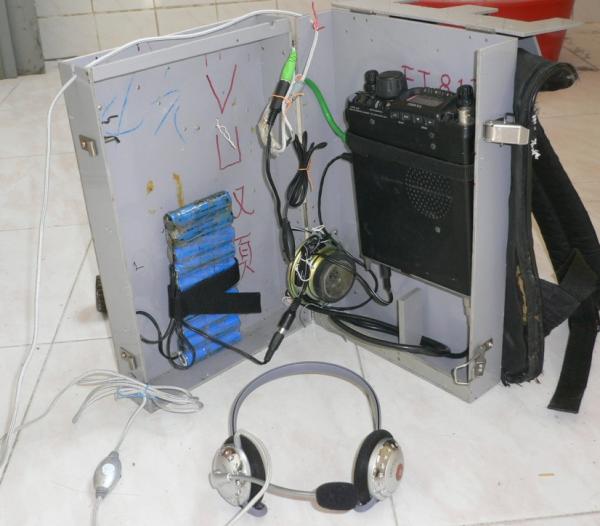

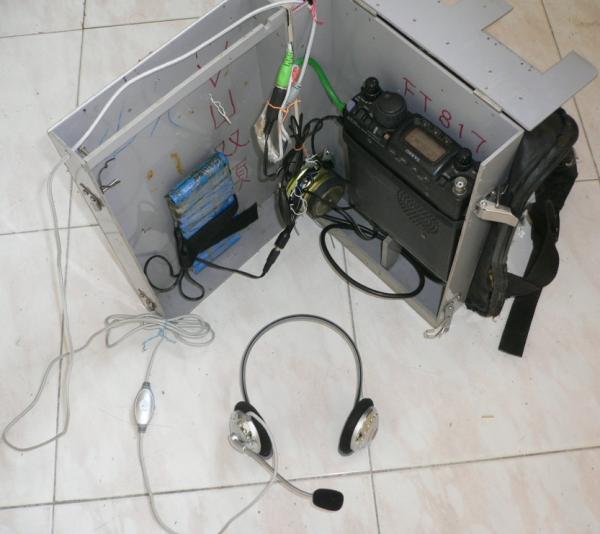

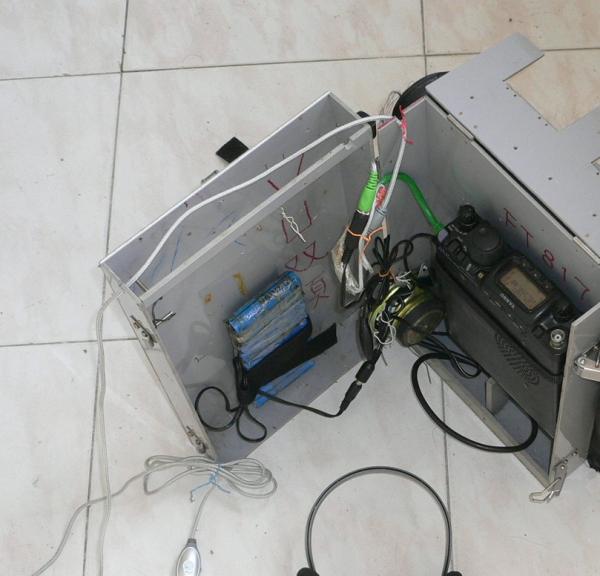

VR2GY · 發表於 30-12-2006 02:38:54

VR2GY · 發表於 30-12-2006 11:50:19

聲控發射 vox 工作原理

VR2GY · 發表於 30-12-2006 12:04:45

聲控發射 vox 工作原理 + 制作 + 測試

VR2GY · 發表於 31-12-2006 00:26:41

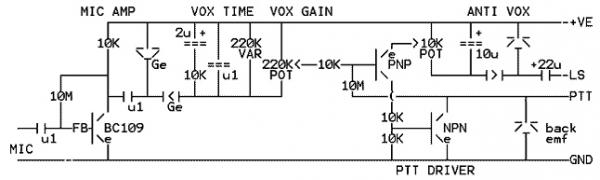

A Simple V.O.X. Circuit
G8MNY
Here is a 3 transistors 4 diodes circuit that is a Voice Operated Tx PTT control as well as an ANTI VOX circuit to stop mis-operation from Rx noise.

The BC109 Mic high gain amp is RF protected by the Ferrite Bead on the base lead. Its' O/P is voltage doubled and the DC stored in the double time constant to give fast response and slow decay time. The rectified DC is referenced from the +ve rail, is put across the 220K VOX gain control for a time determined by the 220K decay variable control that discharges the caps.
The gain controlled sample of the DC switches on the PNP which turns on the NPN PTT drive transistor. The 10M

VR2GY · 發表於 31-12-2006 01:12:23

VR2GY · 發表於 31-12-2006 01:12:51

VR2GY · 發表於 31-12-2006 08:35:02

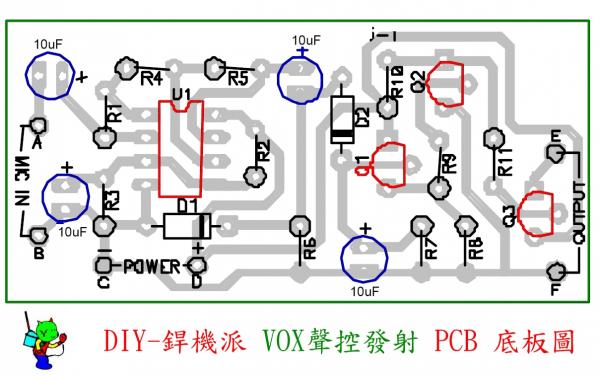

DIY-銲機派 VOX聲控發射 PCB 底板圖
